Citroen – Jumper relay (SID208, 2.2L, 150PS) – ECU- & Diagnose-Info
Originaltitel: 2774, Citroen, Jumper relay, SID208, 2.2L, 150PS
Fahrzeug-Datenblatt für Citroen Jumper relay mit SID208-Steuergerät (2.2L, 150PS): ECU-Einbauort, Diagnose-Position, Außenansicht, DEF/AdBlue-Hinweise.
ECU Einbauort:
Motorraum hinter der Batterie
zb DCM7.1B, DCM7.1A, DCM6

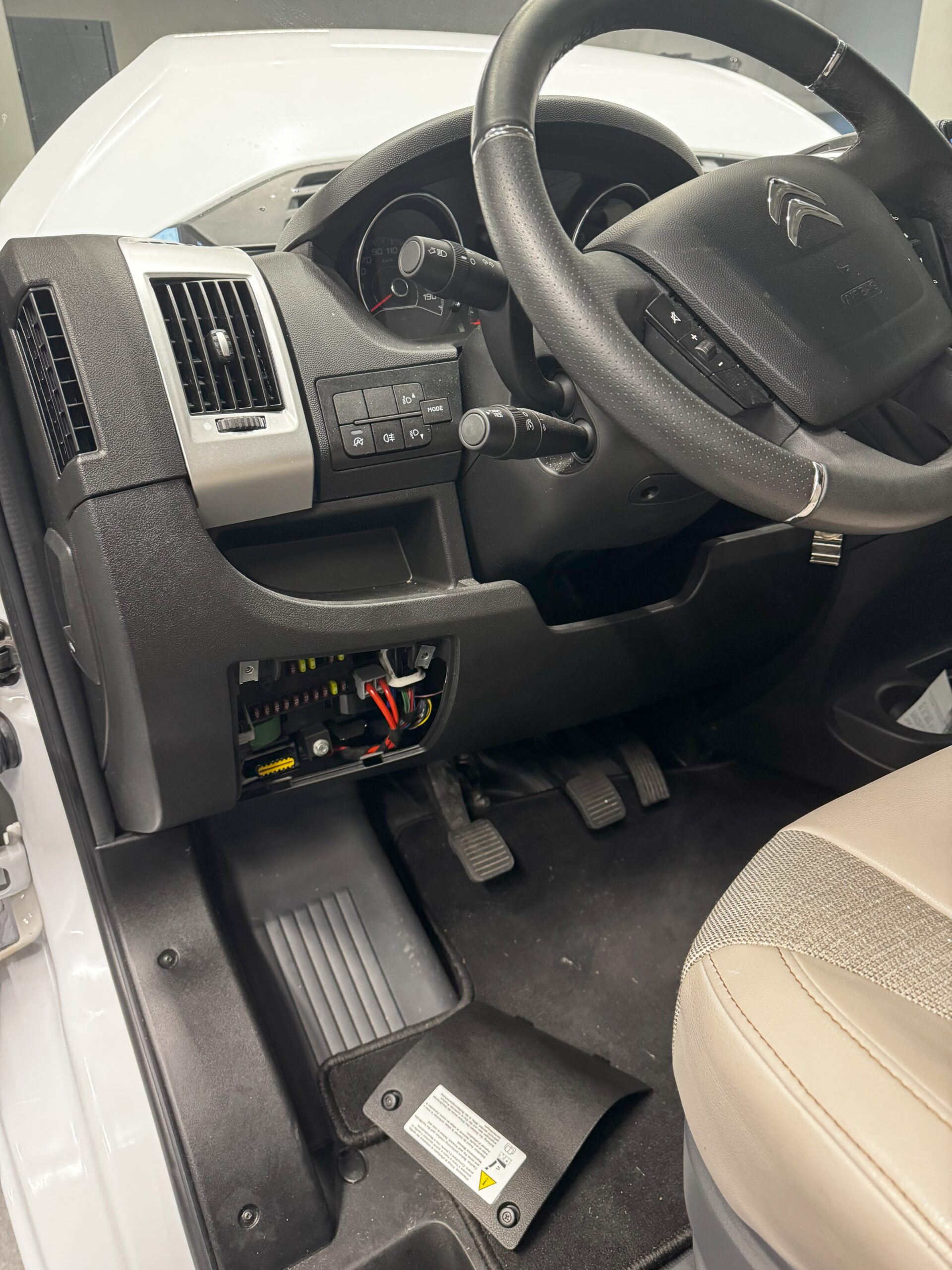

Diagnose Position:
Links neben Lenkrad , zwei Kreuzschrauben lösen, unter der Verkleidung

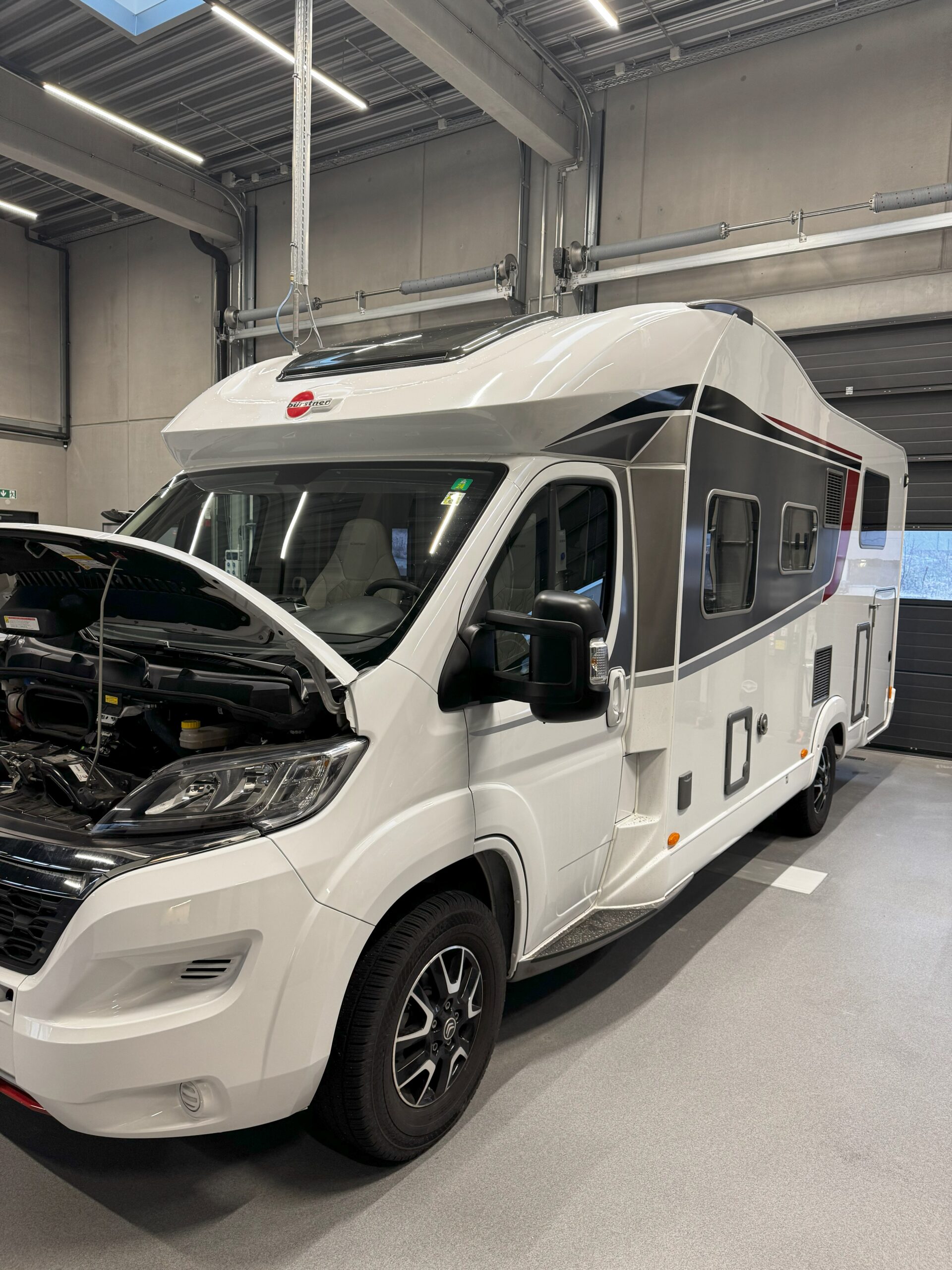

Außenansicht:

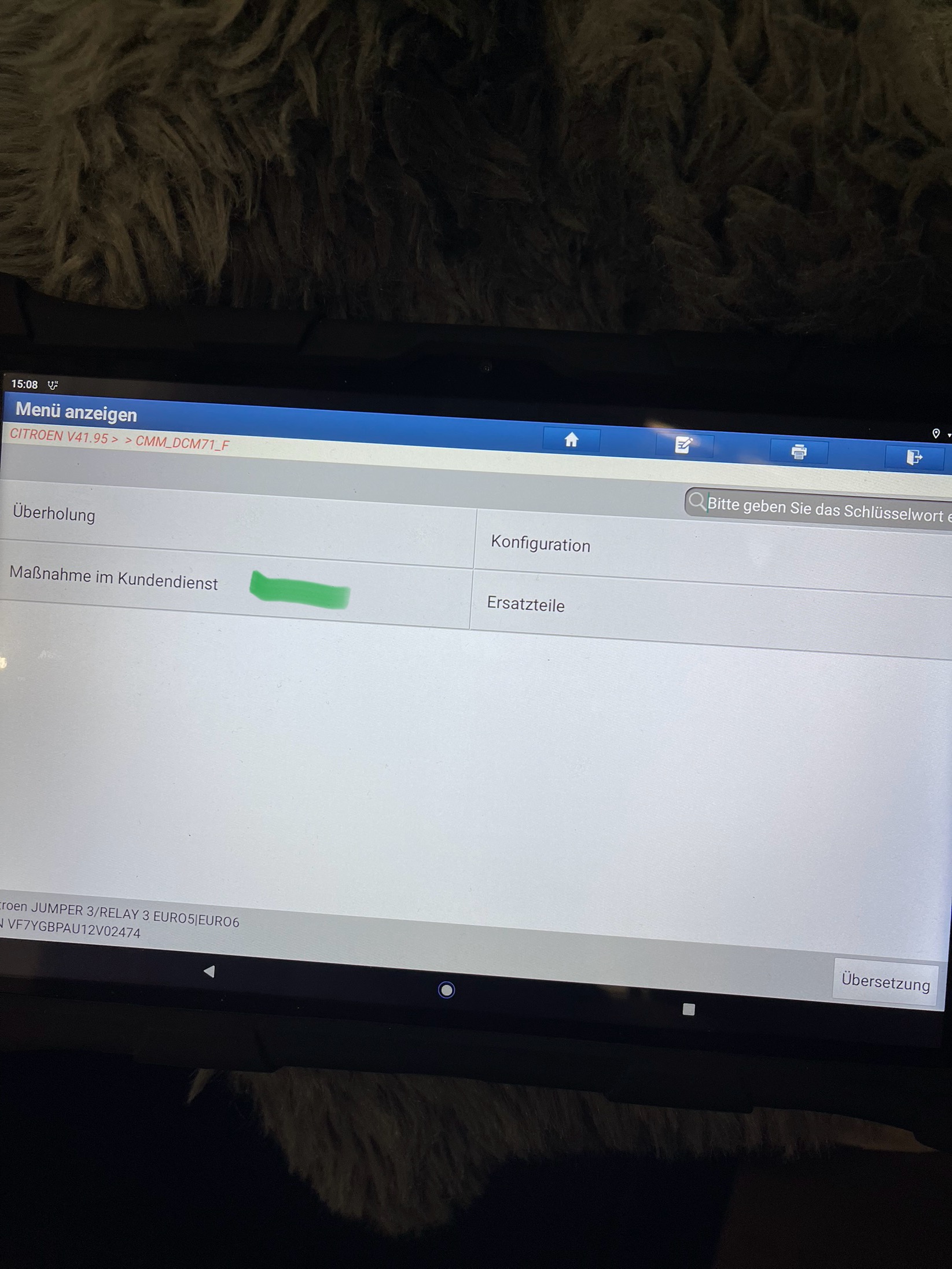

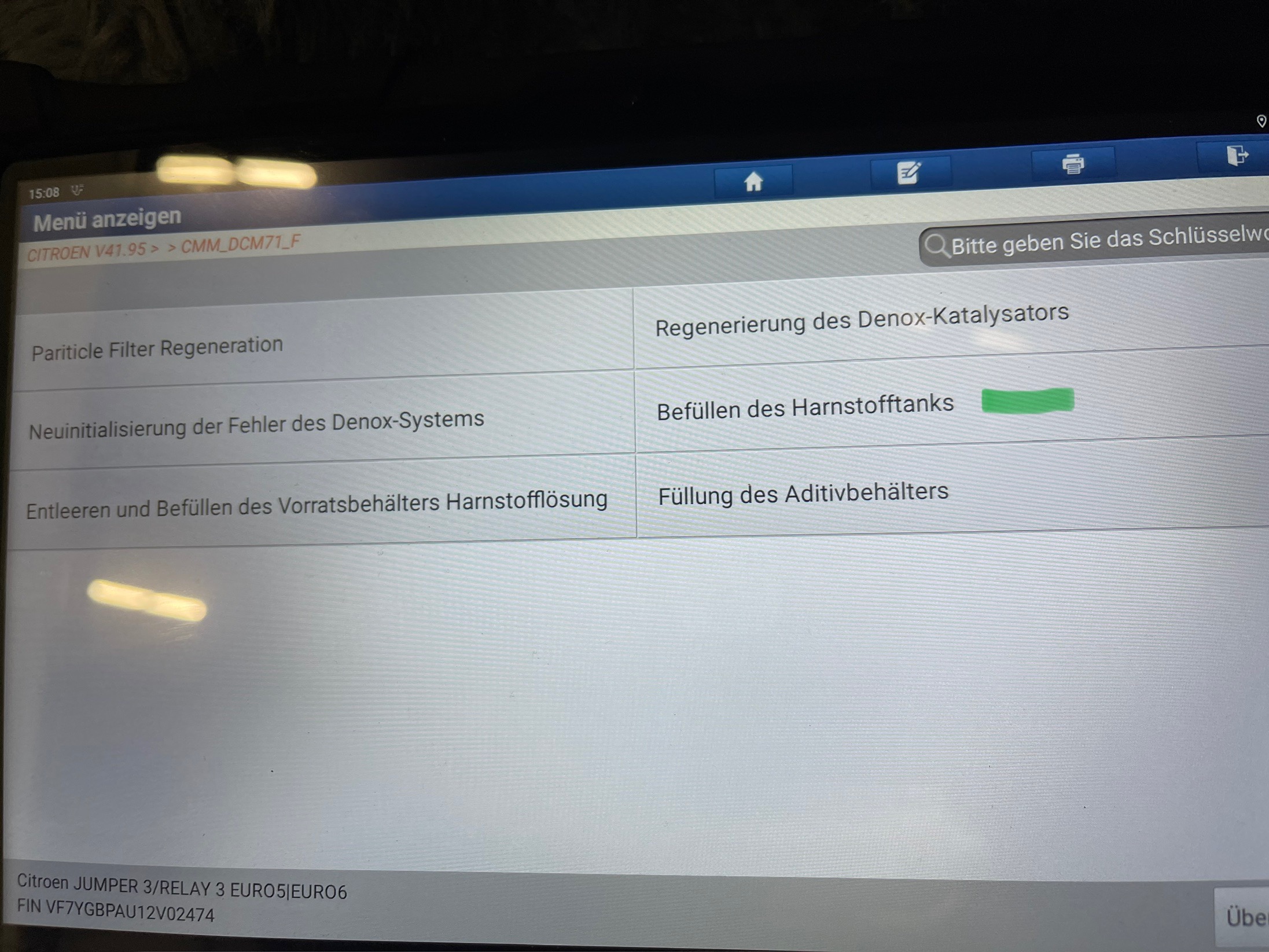

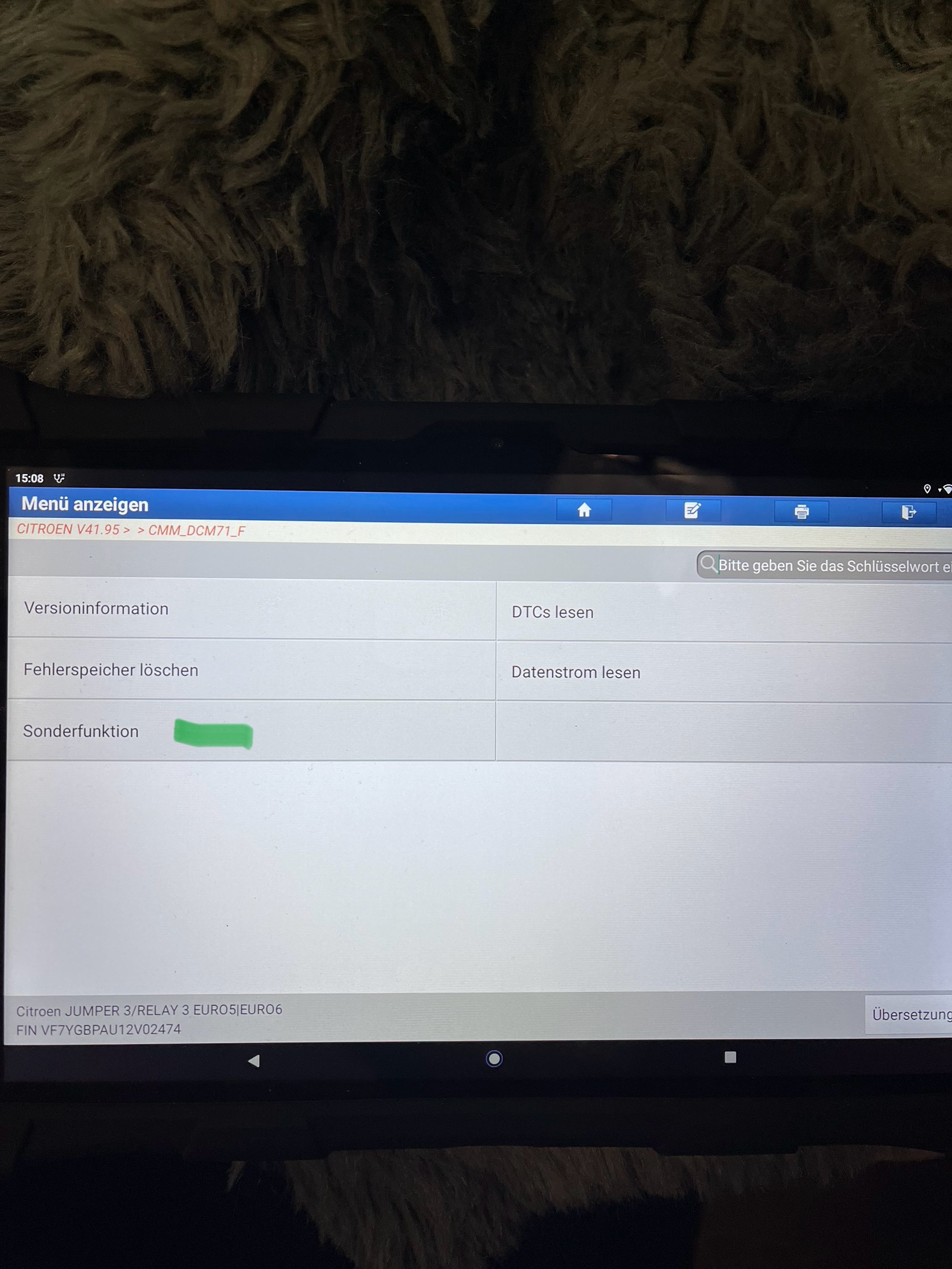

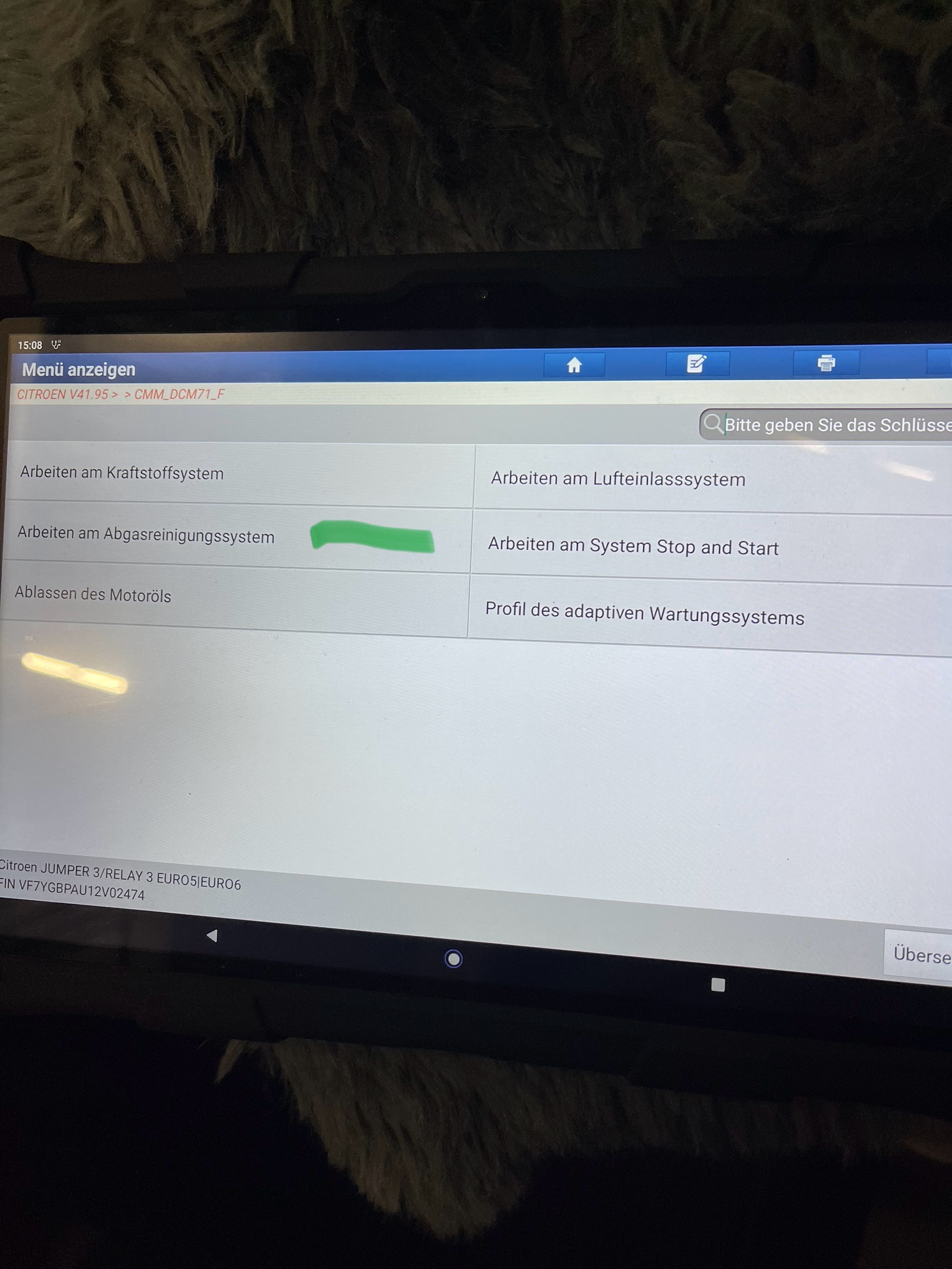

DEF / AdBlue:
Vehicle data sheet for Citroen Jumper relay with SID208 ECU (2.2L, 150PS): ECU installation location, diagnostic port position, exterior view, DEF/AdBlue notes.
ECU installation location:
Engine compartment, behind the battery
e.g. DCM7.1B, DCM7.1A, DCM6
Diagnostic port position:
To the left of the steering wheel; remove two Phillips screws, located under the trim panel
Exterior view:
DEF / AdBlue:
