Citroen – Jumper (DCM6.2C, 2.0L, 131PS) – ECU- & Diagnose-Info
Originaltitel: 2769, Citroen, Jumper, DCM6.2C, 2.0L, 131PS
Fahrzeug-Datenblatt für Citroen Jumper mit DCM6.2C-Steuergerät (2.0L, 131PS): ECU-Einbauort, Diagnose-Position, Außenansicht, DEF/AdBlue-Hinweise.
ECU Einbauort:
Motorraum hinter der Batterie
zb DCM7.1B, DCM7.1A, DCM6

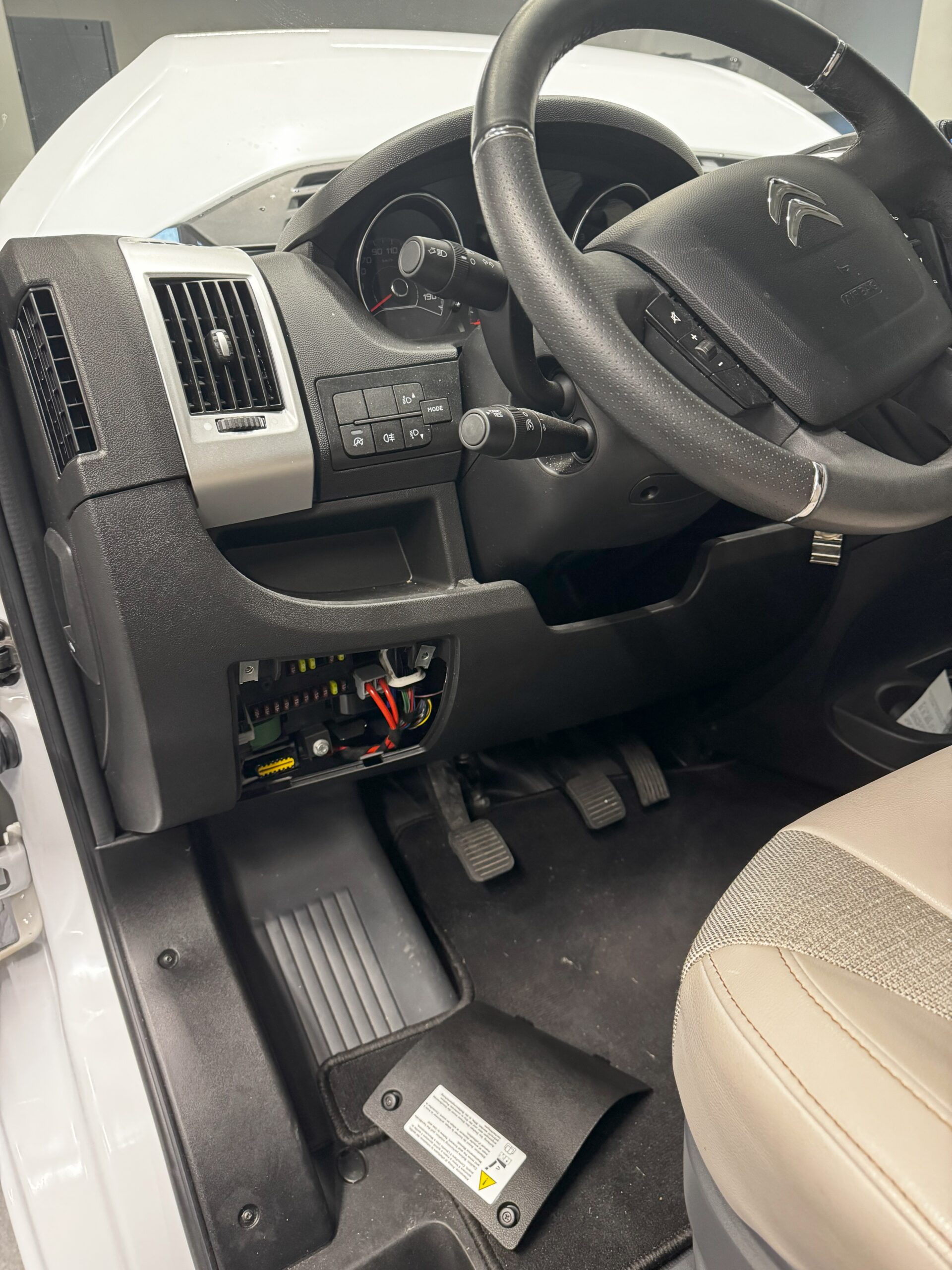

Diagnose Position:
Links neben Lenkrad , zwei Kreuzschrauben lösen, unter der Verkleidung

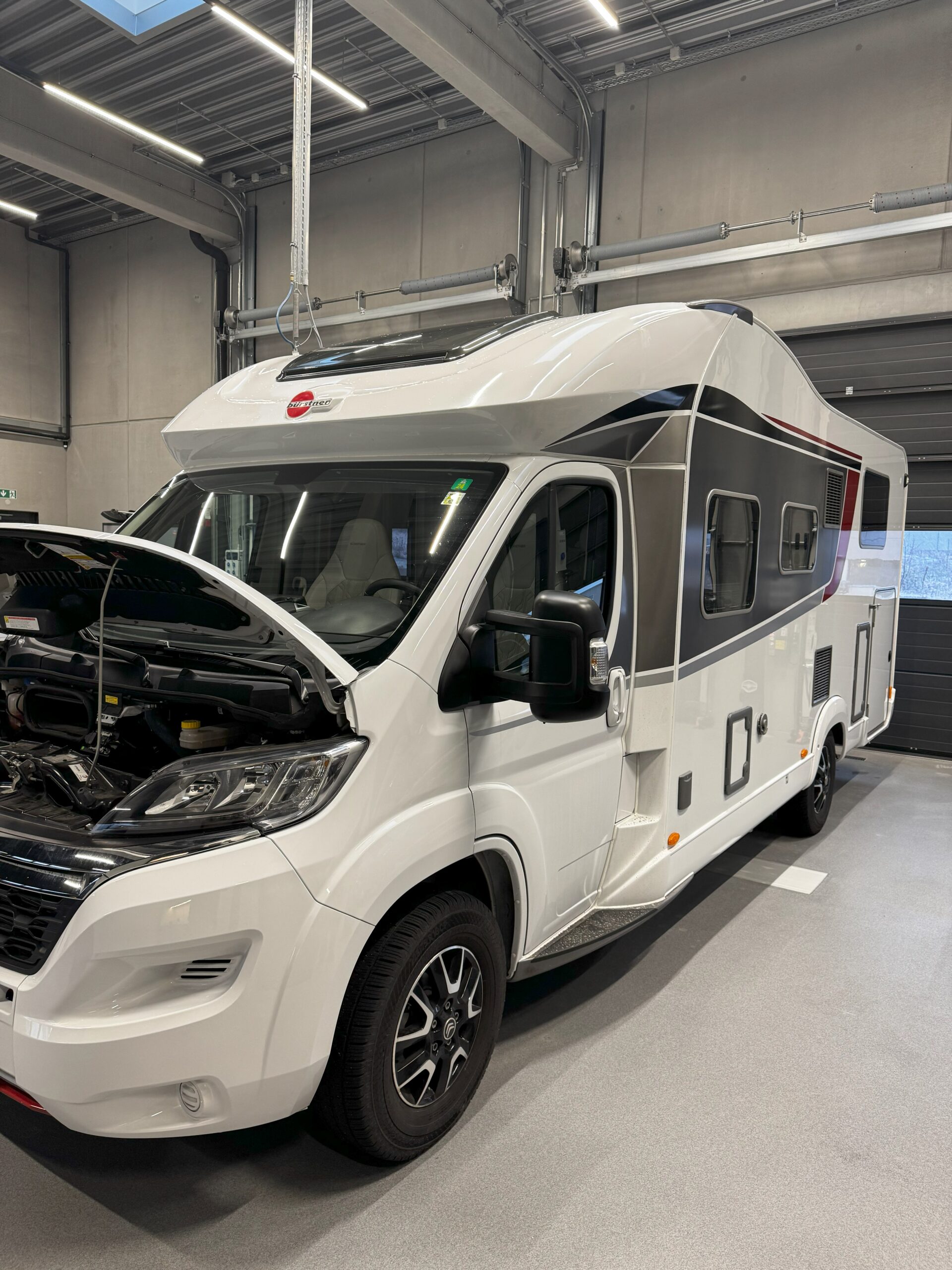

Außenansicht:

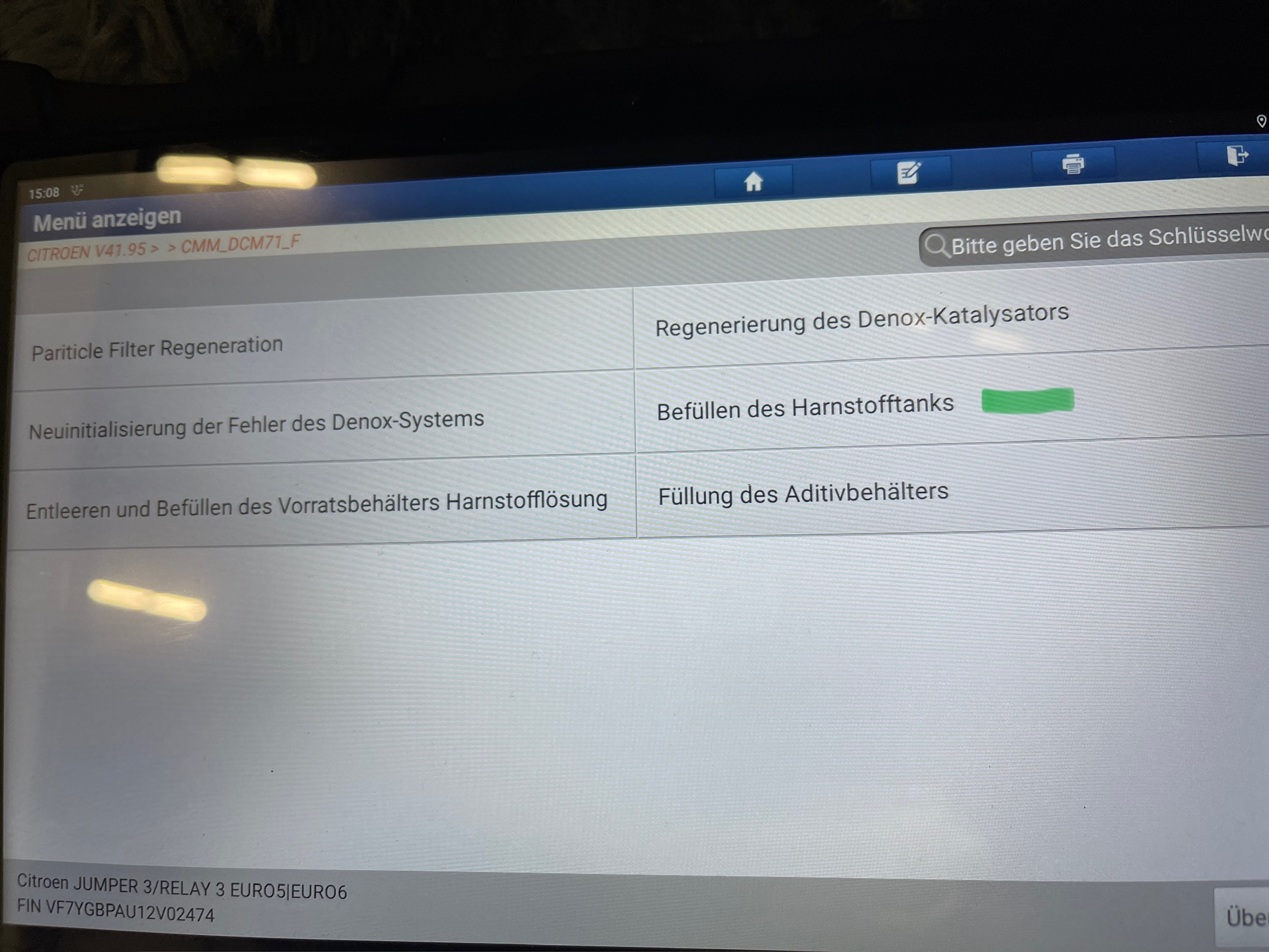

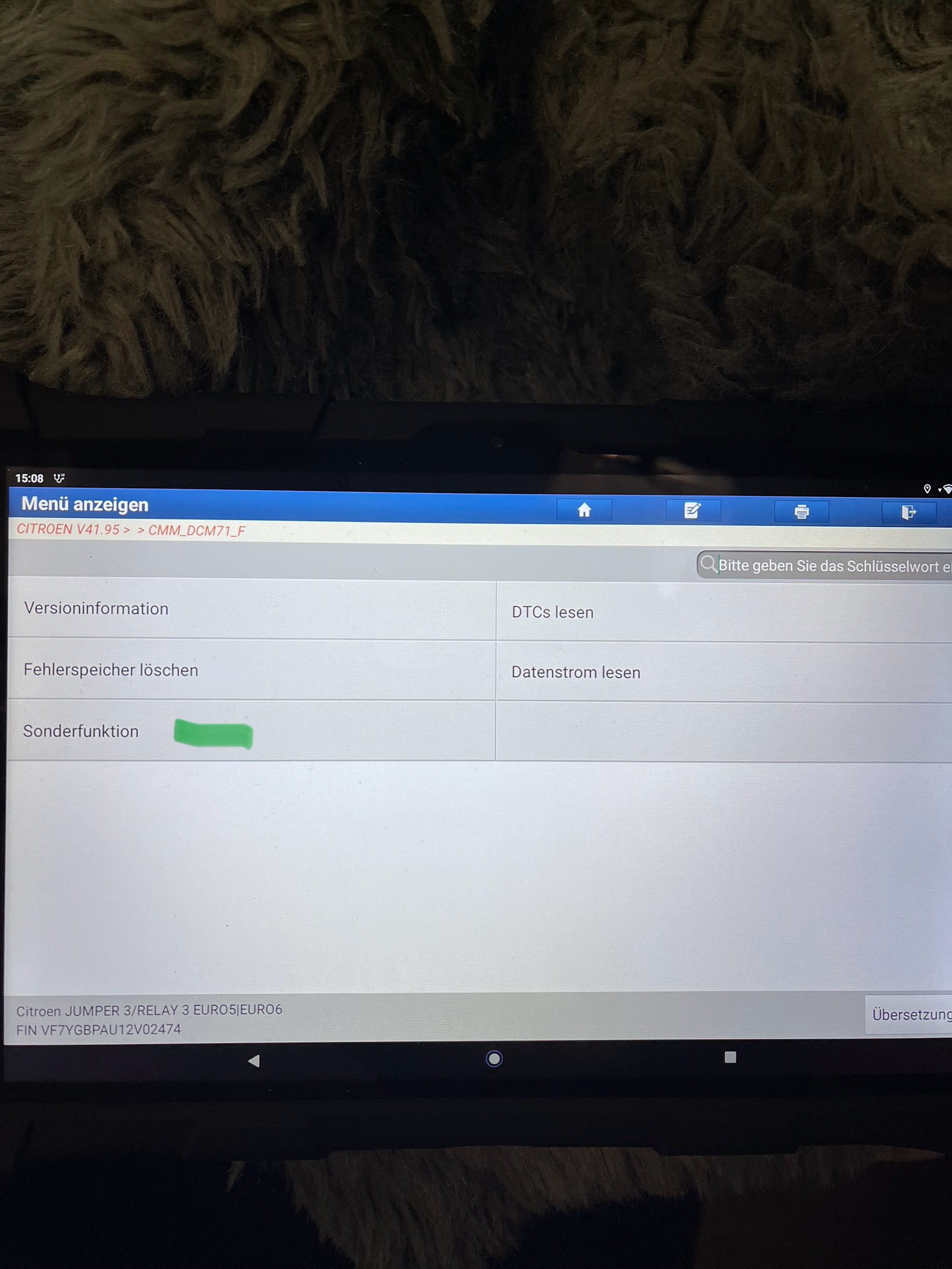

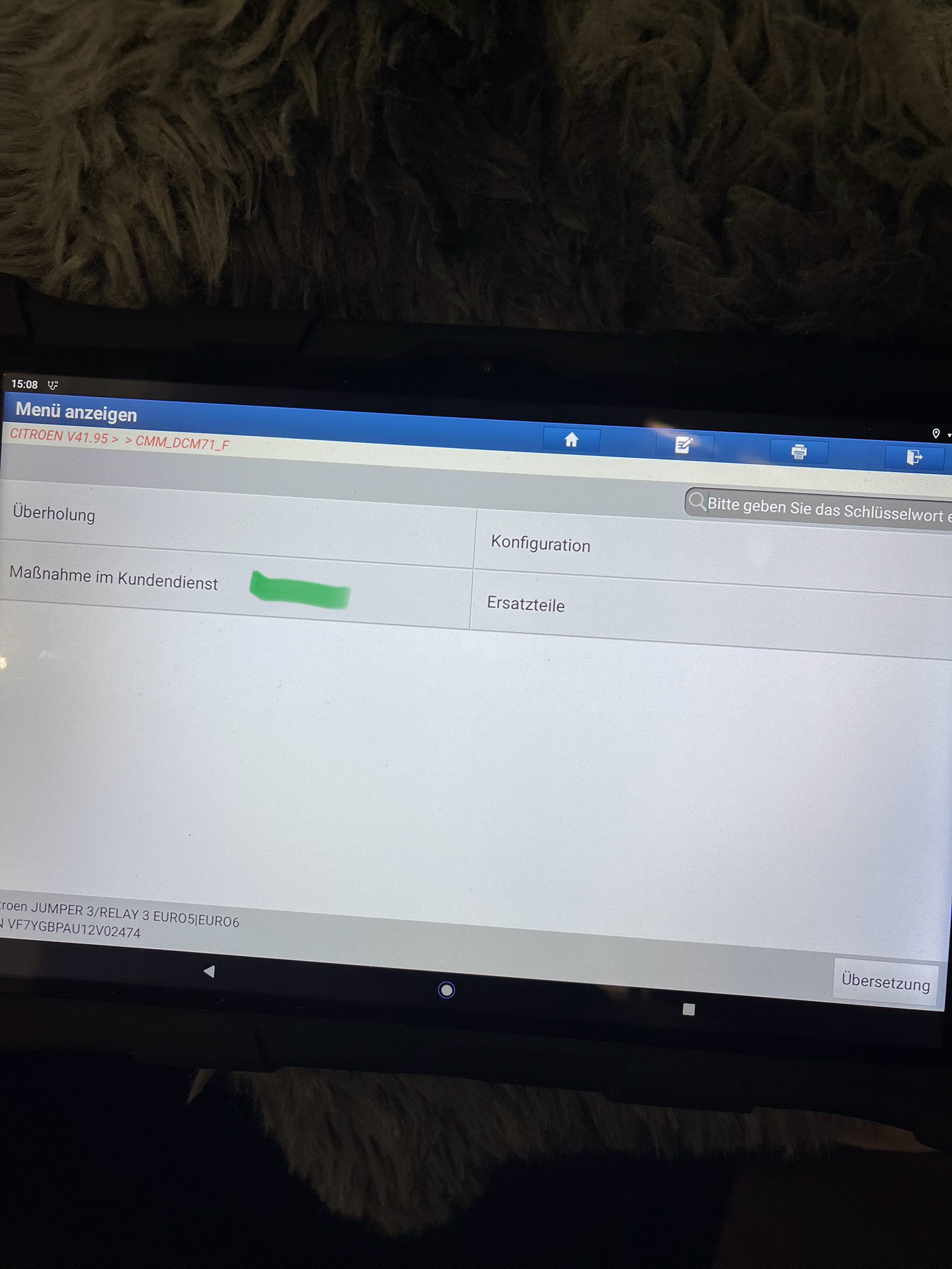

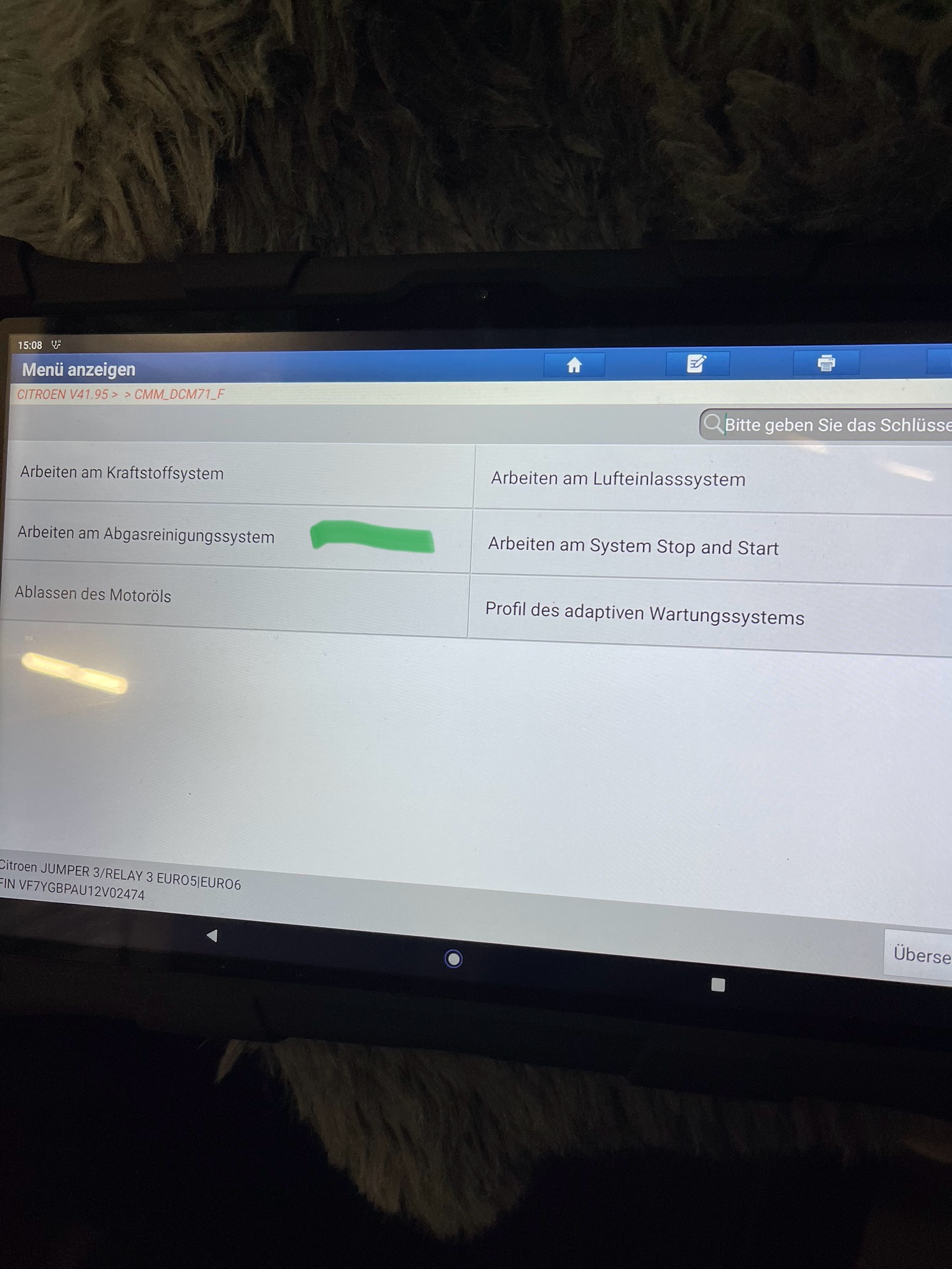

DEF / AdBlue:
Vehicle data sheet for Citroen Jumper with DCM6.2C ECU (2.0L, 131PS): ECU installation location, diagnostic port position, exterior view, DEF/AdBlue notes.
ECU installation location:
Engine compartment, behind the battery
e.g. DCM7.1B, DCM7.1A, DCM6
Diagnostic port position:
To the left of the steering wheel; remove two Phillips screws, located under the trim panel
Exterior view:
DEF / AdBlue:
